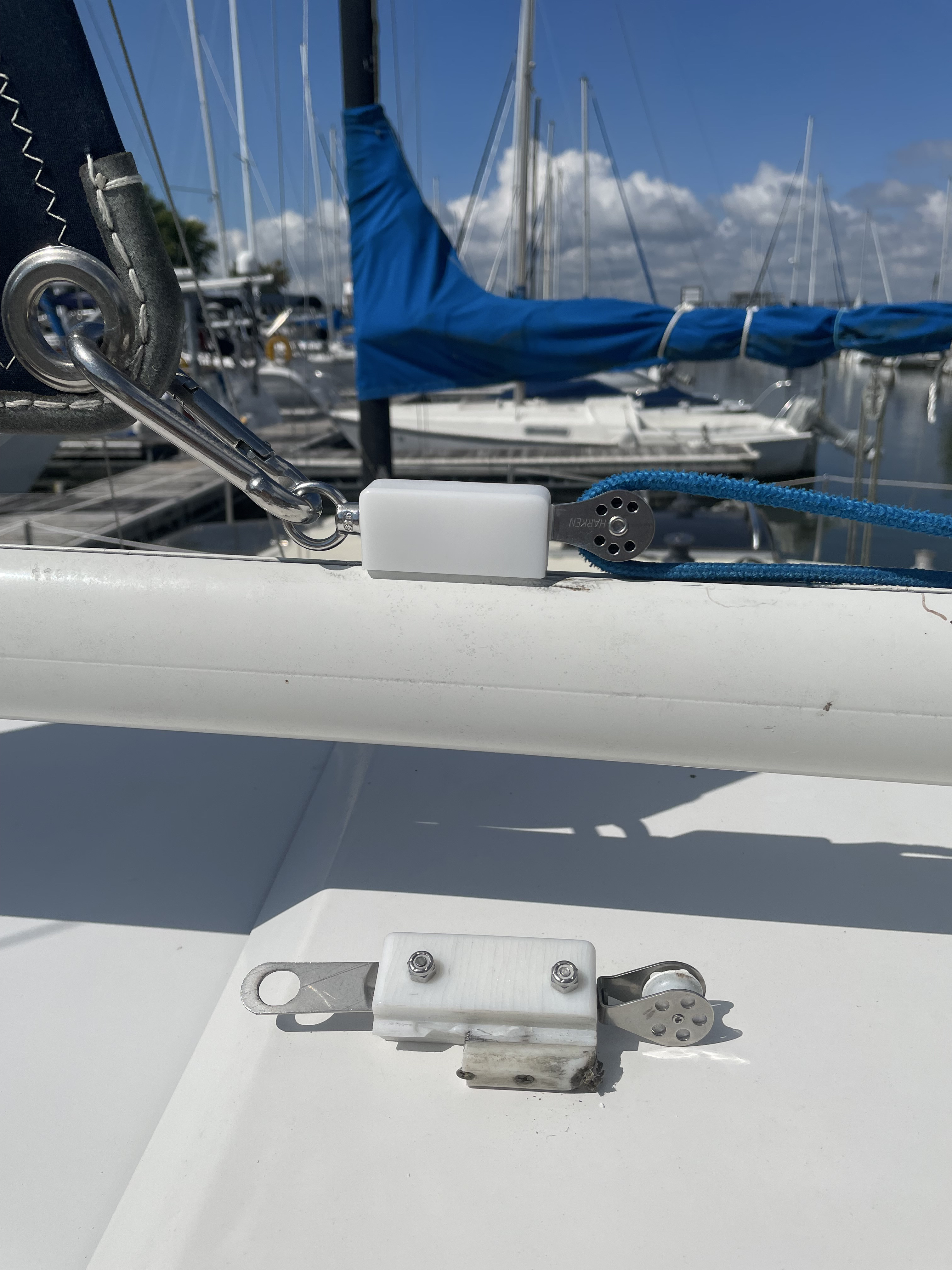

Here is my outhaul block

[Image.jpeg]

Dr. Robert L Weiss Jr.
Director of Music
First United Methodist Carbondale, IL
Professor Emeritus, SIUC
s/v Beach Spring


________________________________
From: Rhodes22-list <rhodes22-list-bounces at rhodes22.org> on behalf of Peter Nyberg <peter at sunnybeeches.com>
Sent: Monday, April 27, 2026 4:49:59 PM
To: The Rhodes 22 Email List <rhodes22-list at rhodes22.org>
Subject: Re: [Rhodes22-list] Out haul rigging

[EXTERNAL EMAIL ALERT]: Verify sender before opening links or attachments.

Barry,

The pulley built into the clew of the sail is something I have never seen before.  It definitely throws a wrinkle into the configuration.

Usually, the outhaul line goes around the pulley (or block) on the car (which gives you the 2:1 mechanical advantage), and the car is attached to the the clew of the sail.  When I got my boat, the car-to-clew attachment was done with a shackle.  The shackle eventually failed, and I replaced it with a continuous loop of dyneema.

My boat is still under its winter tarp, so I can't post a picture.

Hope this helps,

Peter Nyberg
Coventry, CT
s/v Silverheels (1988/2016)

> On Apr 27, 2026, at 10:55 AM, BARRY RUEHLEN <ruehbl at msn.com> wrote:
>
> OK, it's time to ask for guidance. My sailboat partner and I have the rebuild of our 87 Rhodes about 98% complete.  We are finding that we don't have our main rigged properly for haul out so we have to add some hand tugging along the way. I looked through the archives for pictures and descriptions but it's not working for me. That includes a colorful description from Stan. We have the old style metal car but haven't figured the proper way to put it all together. I've included a photo of the car and the aft termination. I did not show how we currently put together as I know it's wrong. The clew has an attachment point that is also a built in pulley if you wanted to use it as such. I think that's what is throwing us off.
> If I could get a picture with a description, maybe I could follow along.
> Best,
> Barry. Rhodes 22 saint james city Fl.
>
